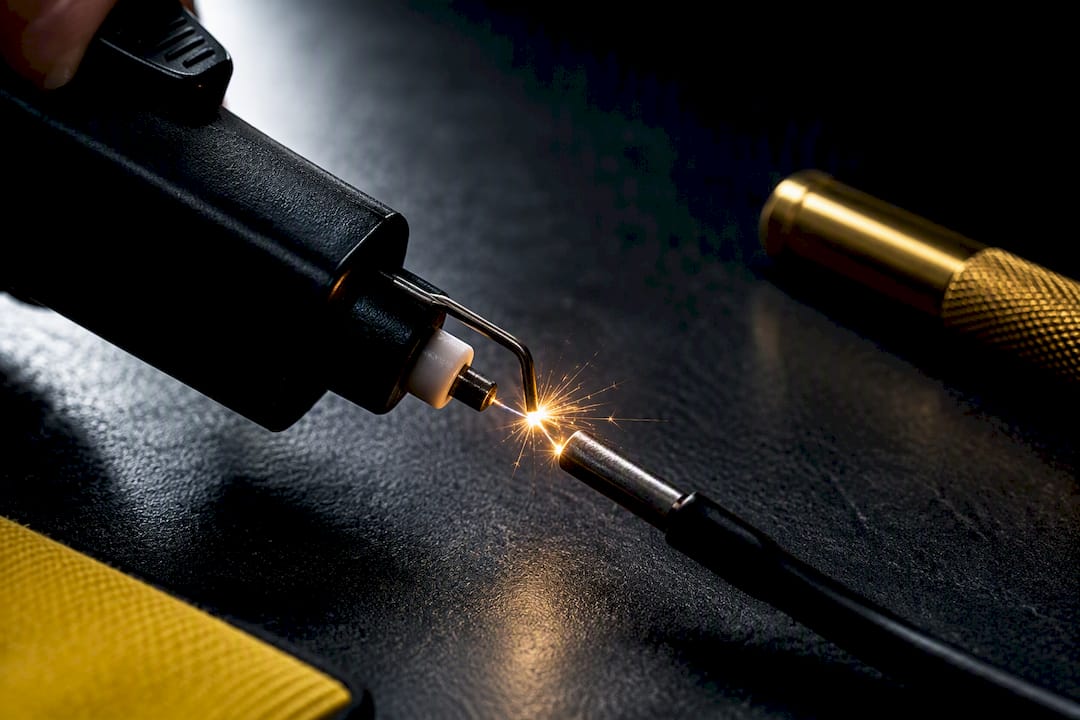

Piezo electrode producing a visible ignition spark

Piezo Ignition: Diagnose No Spark Clicks, Pick a Lighter That Lasts

A piezo ignition produces its spark by converting a hammer strike into a high-voltage pulse across a spark gap, no battery required. The sequence runs from a spring-loaded hammer, through a piezoelectric crystal, to an electrode gap where air ionizes into visible fire. It powers everyday flame, from a pocket lighter to a patio heater, and typically survives tens of thousands of strikes before the crystal wears down, according to Wikipedia’s overview of piezo ignition.

TL;DR:

  • The high-voltage pulse generated by the crystal depends on a rapid impact from the hammer, with the gap width and electrode condition significantly affecting reliability.
  • Crystals made of lead zirconate titanate (PZT) are standard due to their sensitivity and cost-effectiveness, but fatigue over thousands of strikes can cause eventual failure.
  • Environmental factors like moisture, temperature fluctuations, and dirt around the electrode can cause intermittent sparks or failure, making regular cleaning essential.
  • Most failures are due to electrode or wiring issues rather than the crystal itself, so inspecting and cleaning these parts can often extend igniter lifespan.
  • Well-designed piezo igniters with sturdy impact and protected electrodes can reliably produce tens of thousands of sparks for outdoor appliances and lighters.
Allurecart
Find A Lighter Built To Last
Explore Allurecart’s unique collection of stylish lighters, combining reliable spark ignition with striking designs for collectors and everyday users.
Explore the collection

Table of Contents

How does piezo ignition actually work?

The process begins the moment you press a button or squeeze a trigger. That motion compresses a small spring, and once enough tension builds, a catch releases, sending a hammer forward at speed. What happens next is where the mechanics turn into electricity.

The hammer strikes a piezoelectric element, most often a ceramic made of lead zirconate titanate, known as PZT. That impact deforms the crystal’s structure for a fraction of an instant, and the deformation forces a redistribution of electrical charge across the material. The result is a short, high-voltage pulse, the same principle described in Diamond Light Source’s explanation of the piezoelectric effect.

That pulse needs somewhere to go. It travels along a wire lead to an electrode positioned near a small gap, often at a spark tip set apart from the crystal itself. When the voltage across that gap gets high enough, it ionizes the surrounding air, and the ionized path becomes a visible spark. Whether that spark lights the fuel depends on more than voltage: gap width, electrode cleanliness, and the ratio of gas to air at that exact moment all play a part.

The mechanical action itself is fast. From the moment you press the igniter to the instant a spark appears typically takes a fraction of a second, though full ignition of the gas, including any hesitation from a damp burner or a wide gap, can stretch to a second or two.

A few things worth knowing about that sequence:

  • The hammer’s job is to deliver a sharp, sudden impact, not a slow squeeze, since piezo materials respond to rapid stress rather than gradual pressure.
  • The spark gap’s width determines how much voltage is needed before ionization occurs, so a gap that’s too wide can prevent a spark even when the crystal is working fine.
  • Electrode condition matters as much as crystal health, since a corroded or misaligned tip can absorb or misdirect the pulse before it ever reaches open air.

A piezo element generates a brief high-voltage discharge on impact, Diamond Light Source notes, and that discharge is strong enough to jump a small air gap and ignite a gas-air mixture without any external power source.

What are the key components inside a piezo igniter?

Every piezo mechanism relies on a small set of parts, and each one shapes how reliably it sparks.

  • The piezoelectric crystal, usually PZT, converts mechanical shock into voltage; it’s chosen for being compact, inexpensive, and consistently responsive, though quartz and other ceramics appear in some designs where different fatigue or sensitivity characteristics are wanted.
  • The hammer and spring assembly stores energy from your button press and releases it as a single fast impact, often through a telescoping shell that amplifies the force before it reaches the crystal.
  • The impact pad or anvil sits between the hammer and the crystal, spreading and directing stress so the ceramic deforms cleanly rather than cracking under repeated hits.
  • The electrode and lead carry the voltage pulse from the crystal to the spark tip, and manufacturers often route that lead well away from the crystal itself, keeping the fragile ceramic isolated from the heat and reactivity of the spark zone.

Service life comes down to a few predictable stressors: crystal fatigue from repeated mechanical shock, wear at the hammer and spring contact points, and environmental exposure like moisture or built-up grime around the electrode. A module nearing failure often gives itself away before it quits entirely, producing a weaker click, an inconsistent spark, or occasional silence where a solid click used to be guaranteed.

Pro Tip: If you hear a full click but see no spark at the tip in dim light, suspect the electrode or lead before assuming the crystal itself has failed.

Where you’ll find piezo ignition in everyday appliances

Piezo ignition shows up wherever a design calls for reliable, batteryless spark in a compact space. Its low cost and mechanical simplicity make it a natural fit for equipment that spends a lot of time outdoors or in storage between uses.

  • Portable camping stoves rely on it for quick lighting without needing spare batteries in a pack.
  • Gas grills and patio heaters use piezo igniters built into the control knob or a dedicated push button.
  • Handheld lighters use the same principle at a smaller scale, often paired with a butane reservoir.
  • Some outdoor fire pits and older gas log sets use it as the primary ignition source.

The tradeoff shows up in high-cycle or safety-critical systems. Piezo ignition has no way to confirm a flame actually caught, which is fine for a stove you’re watching but less suited to appliances that need built-in flame-proving. That’s part of why many modern ranges and ovens have shifted to hot-surface igniters or electronic systems with flame detection, as CPSC testing has examined in gas range designs.

Troubleshooting a piezo igniter and staying safe while you do it

Most piezo failures fall into a small number of patterns, and working through them in order usually finds the problem fast.

  1. Confirm the gas supply is on and the tank or line isn’t empty before assuming the igniter is at fault.
  2. Listen for the mechanical click; if you hear nothing, the spring or hammer assembly likely isn’t releasing properly.
  3. Look for a visible spark at the tip in low light; a click with no spark points to a wiring, lead, or electrode problem rather than a dead crystal.
  4. Check the electrode gap and clean off any soot or corrosion, since a fouled or misaligned tip can absorb the pulse before it jumps the gap.
  5. If you see a spark but the gas won’t light, suspect flow rate, mixture, or electrode placement rather than the piezo module itself.

Avoid repeated attempts if you smell gas or suspect a leak. Ventilate the area, follow the appliance’s own lighting procedure, and never improvise a repair on a gas control valve. Consumer-safety testing has found that in some oven systems without flame-proving feedback, delayed ignition can allow gas to accumulate before it catches, producing a hazardous flare-up rather than a clean light, according to CPSC’s examination of gas range ignition. That risk is a reminder that ignition and gas control are separate systems working together, not one part covering for the other.

If cleaning the electrode and confirming gas flow doesn’t restore a spark, the piezo module itself is usually the cheaper and simpler part to replace. A gas control issue, on the other hand, calls for a technician rather than a home fix.

How Allurecart applies these mechanics to lighter design

Understanding the hammer-to-spark sequence changes what you look for in a lighter. A robust hammer and spring geometry, a protected electrode lead, and a well-matched impact pad all affect whether a piezo mechanism sparks reliably on the first press or fails intermittently after a few months of pocket carry.

Some lighter makers design piezo-equipped lighters favoring sturdier hammer assemblies and electrode leads routed away from the heat of the spark zone to extend service life. When you’re comparing options, three things are worth checking: mechanical robustness in the button or trigger action, a stated warranty, and an expected service life that lines up with the tens-of-thousands-of-strikes figure typical of well-made piezo crystals.

Readers coming from this explainer often gravitate toward specific designs in the catalog, including the RETRO LIGHTER, CLOCK LIGHTER, LUMINO LIGHTER, LOST SOULS LIGHTER, CAMEL VINTAGE LIGHTER, Vintage Watch Lighter, JET LIGHTER, and ACE OF SPADES LIGHTER, each built around the same reliable spark mechanics covered above.

The crystal science behind every spark

Piezoelectricity comes from how certain crystal structures respond to mechanical stress. In materials like PZT, the crystal lattice lacks a center of symmetry, meaning positive and negative charge centers sit slightly offset even at rest. Squeeze or strike that lattice, and the offset shifts further, generating a measurable voltage across the material, as Diamond Light Source explains in its overview of the effect.

That charge separation happens almost instantly under impact, which is exactly what a piezo igniter needs: a sudden, sharp mechanical shock rather than slow, steady pressure. Sustained pressure produces a much smaller and slower buildup of charge, while a fast hammer strike produces a brief spike large enough to jump an air gap.

This same underlying physics runs in both directions. Apply voltage to a piezoelectric crystal and it deforms slightly, which is how piezo materials also function as sensors and actuators elsewhere in engineering. In an igniter, though, the crystal only ever works in one direction: mechanical force in, high-voltage pulse out. The reliability of that conversion, strike after strike, is what makes piezo ignition useful well beyond lighters, showing up in fuel injectors, ultrasonic devices, and precision positioning equipment that all lean on the same crystal behavior.

The crystal science behind every spark — overview diagram

What materials go into a piezo element, and why

Lead zirconate titanate remains the dominant material in piezo ignition because it balances sensitivity, cost, and manufacturability better than most alternatives. It produces a strong voltage response for a given amount of mechanical stress, which lets manufacturers build a compact igniter without needing an oversized hammer or spring.

Quartz is the other material you’ll encounter, prized in some designs for its stability and resistance to fatigue over repeated cycles, though it typically costs more to machine and tune than PZT ceramics. Some engineered ceramics split the difference, trading a bit of PZT’s raw sensitivity for improved durability under heavy daily use.

Manufacturing tolerances matter more than most buyers realize. The crystal has to be shaped and mounted precisely enough that the hammer’s impact lands consistently in the same spot, since an off-center strike wastes energy and produces a weaker pulse. The impact pad or anvil that sits between hammer and crystal is engineered to spread that force evenly, protecting the ceramic from the kind of localized stress that causes premature cracking. Over thousands of cycles, even a well-made crystal experiences gradual fatigue, which is the main reason piezo igniters eventually need replacing rather than lasting indefinitely.

How temperature, moisture, and wear affect a piezo spark

Piezo ignition is mechanically simple, but its environment still shapes how well it performs over time. Cold temperatures can make springs stiffer and slightly slow the hammer’s release, occasionally producing a weaker strike and a less reliable spark on the first try. Extreme heat, by contrast, can accelerate wear on rubber seals and plastic housings surrounding the mechanism, even if the crystal itself tolerates heat reasonably well.

Humidity and moisture pose a more direct threat to the spark gap itself. Condensation or accumulated grime around the electrode tip can partially short the voltage pulse before it jumps the gap cleanly, producing the kind of intermittent spark that gets blamed on a “dying” igniter when a simple wipe-down would solve it.

Mechanical wear is the slower, steadier factor. Every strike puts a small amount of stress on the crystal, the hammer’s pivot point, and the spring itself, and that repeated cycling is what eventually leads to the crystal fatigue behind piezo ignition’s tens-of-thousands-of-strikes lifespan, as Wikipedia’s entry on piezo ignition notes. Keeping the mechanism dry, clean, and free of grit between uses is the simplest way to get a piezo igniter closer to the long end of that range rather than the short one.

Visualizing the sequence from press to spark

The piezo ignition sequence is easiest to understand as a short chain: button press, spring compression, hammer release, crystal impact, voltage pulse, electrode discharge, spark. Each link depends on the one before it, which is why a fault anywhere in the chain shows up as a specific, identifiable symptom rather than a vague “it’s not working.”

Seven-step piezo ignition process from press to spark

A basic schematic of a piezo igniter typically shows the spring and hammer housed in a telescoping shell, with the crystal seated against an impact pad at one end and a wire lead running from the crystal to a remote electrode near the burner or spark tip. That physical separation between crystal and electrode is deliberate, keeping the sensitive ceramic away from the heat and combustion byproducts near the flame itself.

Manufacturer manuals and appliance documentation sometimes include exploded-view diagrams of this assembly, useful for anyone troubleshooting a specific model rather than the mechanism in general. For a reader trying to picture the process without a diagram in hand, it helps to think of it as a tiny, self-contained lightning strike: mechanical energy goes in at one end, and a fraction of a second later, a spark jumps a gap at the other end, with nothing electrical happening in between except inside the crystal itself.

What piezo ignition gets right, and where it’s overrated

Piezo ignition earns its reputation as one of the more dependable low-cost ignition methods, but that reputation sometimes gets stretched further than it should. The batteryless design is genuinely valuable for anything that sits in storage between uses, since there’s no dead battery to discover the moment you need a flame. That’s a real advantage, not marketing.

Where the conventional advice falls short is in treating every “click without flame” as a dying igniter. More often, the fix is a dirty electrode gap or an incorrect gas mixture, not a failed crystal, and jumping straight to replacement wastes money on a mechanism that had years left in it. The other overlooked factor is manufacturing tolerance: a well-made piezo assembly with a properly aligned impact pad will consistently outlast a cheaper one built to the same nominal specification, even though both get marketed as “piezo ignition” without distinction.

If you take one thing from this explainer, prioritize inspecting the electrode and gap before assuming the worst. It’s the fastest, cheapest check, and it solves more perceived failures than people expect.

— Allurecart

Finding a piezo lighter built to last

Once you understand what makes a piezo mechanism reliable, a hammer and spring that deliver a clean strike, an electrode kept clear of the spark zone’s wear and tear, choosing a lighter becomes less about looks alone and more about knowing what’s inside.

GLOW LIGHTER

Some collections pair striking design work, from steampunk detailing to sleek minimalism, with piezo mechanisms chosen for consistent spark performance. Some sellers also offer free worldwide shipping on qualifyling orders to remove barriers for collectors and everyday users ordering globally. If you’re drawn to a design that also needs to perform strike after strike, browse the full range of collectible lighters and find the one that matches both your taste and your need for a dependable flame.

Sources

FAQ

How does piezo ignition work?

A spring-loaded hammer strikes a piezoelectric crystal, usually PZT, and that impact generates a brief high-voltage pulse that jumps a small electrode gap as a spark, as Diamond Light Source explains. The entire mechanical action typically takes a fraction of a second.

How long do piezo igniters last?

Piezo igniters commonly continue sparking for many tens of thousands of strikes before crystal fatigue and mechanical wear cause failure, according to Wikipedia’s entry on piezo ignition. Actual lifespan depends on how the unit is built and how it’s stored between uses.

Does a piezo igniter hurt?

The spark from a piezo igniter can deliver a brief static-like jolt if you touch the electrode directly during discharge, but it’s not dangerous under normal use. The real safety concern lies with the gas it ignites, not the electrical pulse itself, which is why appliance manuals and CPSC’s testing of gas range ignition focus on proper lighting procedure rather than the spark.

Do piezo igniters need a battery?

No, piezo ignition is entirely batteryless: the spark comes from mechanical impact on a crystal rather than any stored electrical charge. That’s part of why it remains common in camping stoves, grills, and lighters that need to work reliably after long periods unused.
